Description

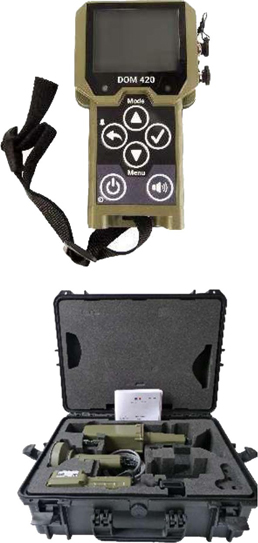

Saphyrad MS: Military Survey Meter (2/4)
- Wide gamma measuring range
- External smart probes(α,β,γ)
- Specific algorithm for very fast & reactive detection.
- Designed to operate in harsh environments, as well as CBRN protection
- Built-in GPS receiver
- High Image quality color LCD screen
- Built-in simulation function for training
Saphyrad MS: Military Survey Meter (3/4)
Saphyrad MS: Military Survey Meter (4/4)

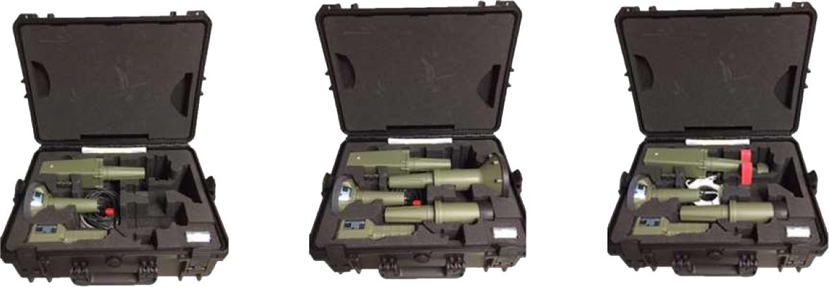

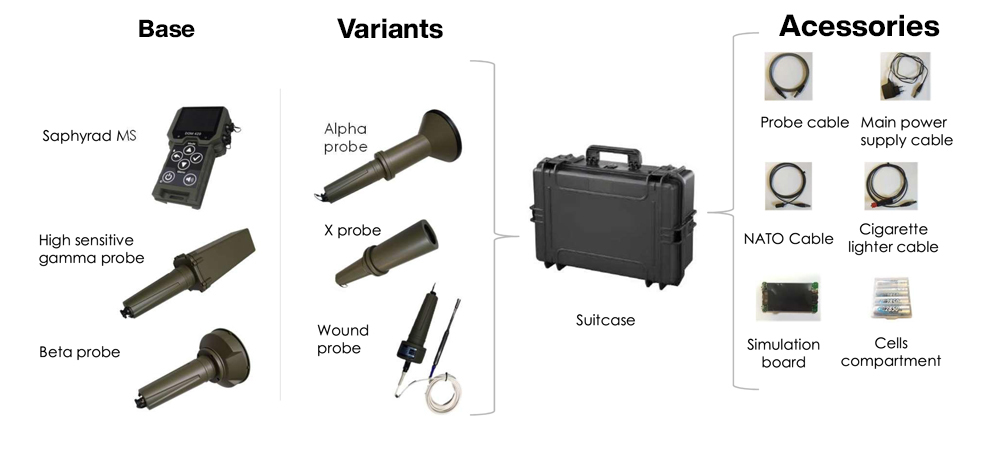

Kits
| Saphyrad MS | Basic Kit | Safety Kit | Emergency Kit |
|---|---|---|---|
| Dose Rate Monitor | X | X | X |
| High Sensitive Gamma Probe | X | X | X |
| Beta Probe | X | X | X |
| X ray Probe | X | X | |
| Alpha Probe | X | ||
| Wound Probe | X | ||
| Suitcase with accessories | X | X | X |
DetectorsGM tubes Dose rate measurement range0,05 µGy/h to 10 Gy/h Dose measurement range1 µGy to 10 Gy Energy range50keV to 3MeV Display2 thresholds for dose and dose rate |
Keyboard6 large buttons Screen3.5” color LCD display (320 x 240 pixels with automatic backlight level) Alarm indicator1 red LED, 1 high level buzzer (level adjustable), 1 vibrator Operating temperature-30C to +50C. |
Batteries4 AA /LR06 standard mignons (alkaline, lithium or rechargeable NiMh) AutonomyWith Lithium primary batteries: 34 hours Dimensions194 x 115 x 49 mm Weight (incl. Batteries)660 g |
Ruggedized design for harsh environmentsThe SaphyRAD MS has a very robust housing specifically designed for military, hazmat or first responders operations and use with CRBN clothing. VersatilityIts monitor includes dose rate and dose functions. With the additional probes, it can also detect and identify radiation contamination. |
Ease of useThe SaphyRAD MS has an ergonomic interface with six large buttons, and a bright LCD color display designed for day and night operations. |
Training functionThe device also includes a convenient simulation kit for gamma dose rate measurement or contamination detection training without using a radioactive source. |
| The SaphyRAD MS system was designed to meet all requirements of military troops or hazmat teams regarding robustness, ergonomics and ease of use: it offers an IP65 housing, a GPS module and a wide 3,5” LCD color display with automatic backlight level.
The monitor includes two embedded gamma dose rate detectors used for dose and dose rate monitoring in harsh environments, and its range of external probes detect and measure alpha, beta, gamma and X-ray radiations. |
All data are stored on a removable SD card, for more convenience when performing a post-operation analysis.
Flexible, the SaphyRAD MS’ power supply accepts several types of batteries (four standard AA/LR06 lithium, alkaline or NiMh rechargeable mignons) for an autonomy ranging from 18h to 34h. |
It also includes a convenient simulation kit for training, in order to perform gamma dose rate measurement or contamination detection without a radioactive source. |
- External probes
- Carrying case
- PC software
Reasons To Choose SaphyRAD MS
Wide range of smart probes
Built-in simulation function for training
Versatile: radiation contamination and exposure measurements
Ruggedized design
Wide & bright LCD color display
